Computer controlled, with the industry first Commander system, a single driver/operator can produce concrete to meet any specification at the touch of a button.

All V95 variants come standard with the industry leading Commander control system. Options include dual bins for natural pozzolans, fly ash, micro-silica and GGBFS blending. Each unit can be customised to your exact specifications.

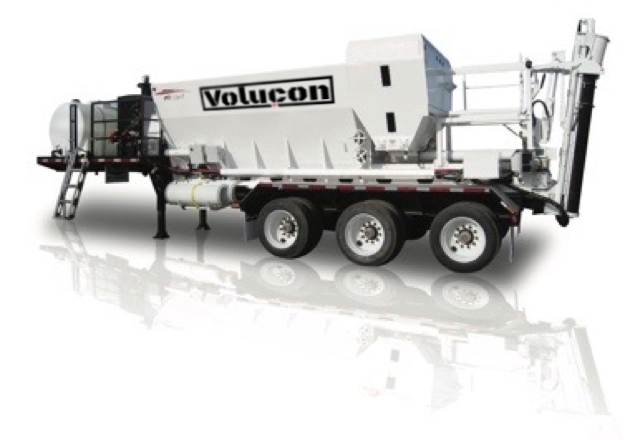

The Volucon V95-50 is trailer mounted volumetric mixer powerhouse on a custom-built tri-axle step deck trailer. It includes all standard features of the V95 range and comes with its own independent diesel engine power supply and can be supercharged with additional options such as dual cementitious bins, and powerful wide diameter augers for maximum production output.

Each Volucon volumetric mixer comes standard with everything you need to make perfect concrete but can be customised based on specific needs.

Volucon standard equipment includes:

• Commander System included options:

  • Dual automated admixture systems

  • Digital display remote control

  • Automatic controlled water system

  • Selectable electronic ticket printer

• Twin aggregate bins

• Standard cement bin (3.2 cubic metres)

• Pneumatic fill & bag house system on the cement bin

• High production mix auger

• Dual oil cooler ("Gulf spec")

• Electric tarp

• Pressure washer

• Auto-lube system

• Rear ladder assembly

• Extra set of auger blades

Volucon optional equipment includes:

• One and three years spare parts kits

• 12" high production mix auger

• Extra quick detach spare auger

• Load Sensing package (see below)

• Powder colour feeder

• Fibre dispenser

• Increased cement hopper capacity up to 5.25 cubic metres (single cement bin options only)

• Dual cement/cementitious hoppers – 3.25 and 2.0 cubic metres

• Pneumatic fill & bag house system on the cement bin

• Cummins upgrade engine

Commander Control System:

• 4 admix system, 5 powder/auxiliary system capabilities

• Ability to set moisture contents

• Adjustable auxiliary control settings

• Admix set points adjusted on screen with changes in belt speed

• Auger boom/swing/chute joystick

• Auto-adjusted water set points

• Automatic calculation of gate settings and ratios

• Calibration for aggregates and powders

• Data logging for thousands of previous mix jobs

• Digital adjustable auxiliary ratio for colour and fly ash – up to 4

• Digital adjustable cement ratio

• Digital adjustable vibrator times

• Digital admix flow readings

• Digital auger and belt speed settings

• Digital production rate display (yd/hr)

• Mix design loading and saving – up to 50

• Optional password protected screens

• Printable receipts for last 25 jobs

• Selectable print options

• Volume stop feature

• Water set points adjusted on screen with changes in belt speed

• Water wash out mode

Load Sensing Package:

Load Cell System

The scales weigh the entire cement bin via summation and subtract the actual bin out of the weight leaving only the powder left. Once that has occurred the scales continuously monitor the output of cement (live through the PLC) and will dynamically change the auger cement feed rate so that the actual weight of cement from the selected mix design is entered into the mix bowl. In other words, the scales constantly weigh the cement and make small adjustments in real time to ensure it’s consistent and matches weight entered into the mix design on the PLC.

Another added value feature is that you can use the inbuilt scales to weigh the cement during calibration.

Gate Height Verification Sensors

Sensors on the gates monitor gate height and report their position to PLC system to ensure proper height for the selected mix design. The mixer will not start if the gates are not at the proper height for the selected mix design. Basically, if the gates are not in the right position for the selected mix design the mixer will not start.

Aggregate Belt Material Flow Sensors

Ultra-sonic sensors monitor material as it passes through the strike off, looking for dips in the flow that might adversely impact the mix design. The sensor reports to the PLC system which will match the data against thresholds and take appropriate action if required. These sensors are monitoring the strike off of gates on both the sand and stone bins. If a void in the strike off is constant it means we have an aggregate material flow issue and the machine will stop until we fix it. This is a way to look for both large stones and other foreign material in aggregates and stop the machine if the aggregates run out.

Water Tank Level Sensor

The tank includes a water level sensor that monitors water level and reports low level to the PLC system. Mixer will not start or will auto stop if low water level is detected. This can also be viewed on a new screen on the Commander for water calibration.

Cement Bin Level Sensor

The load cells monitor the amount of cement in the bin and shut the unit down when it hits a critical level. The unit will stop when that critical weight or low level has been reached. We also have these as a sensor system that can be installed without the scales.
